Link-Belt® LDT Series

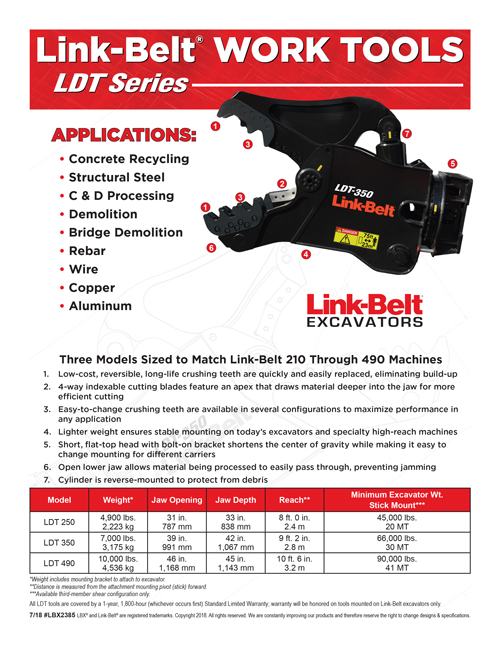

Link-Belt LDT Work Tools Flyer


Link-Belt LDT Concrete Processor work tools match today’s new classes of excavators and specialty, high-reach applications. These rugged work tools are the ideal choice for C&D processing, recycling or bridge demolition applications involving concrete, structural steel, rebar, wire, copper or aluminum materials. Three models sized to fit Link-Belt 210 through 490 machines.

  • Easy-to-change crushing teeth are available in several configurations to maximize performance in any application
  • Lighter weight ensures stable mounting on today’s excavators and specialty high-reach machines
  • Short, flat-top head with bolt-on bracket shortens the center of gravity while making it easy to change mounting for different carriers
  • Open lower jaw allows material being processed to easily pass through, preventing jamming
  • Cylinder is reverse-mounted to protect from debris
Model Weight* Jaw Opening Minimum Excavator Wt.
Stick Mount**
LDT 250 4,900 lbs. (2,223 kg) 31 in. (787 mm) 45,000 lbs. (20 MT)
LDT 350 7,000 lbs. (3,175 kg) 39 in. (991 mm) 66,000 lbs. (30 MT)
LDT 490 10,000 lbs. (4,536 kg) 46 in. (1,168 mm) 90,000 lbs. (41 MT)

View Full Specs in Brochure

*Weight includes mounting bracket to attach to excavator.
**Available third-member shear configuration only.

All LDT tools are covered by a 1-year, 1,800-hour (whichever occurs first) Standard Limited Warranty; warranty will be honored on tools mounted on Link-Belt excavators only
