Link-Belt® LDR Series

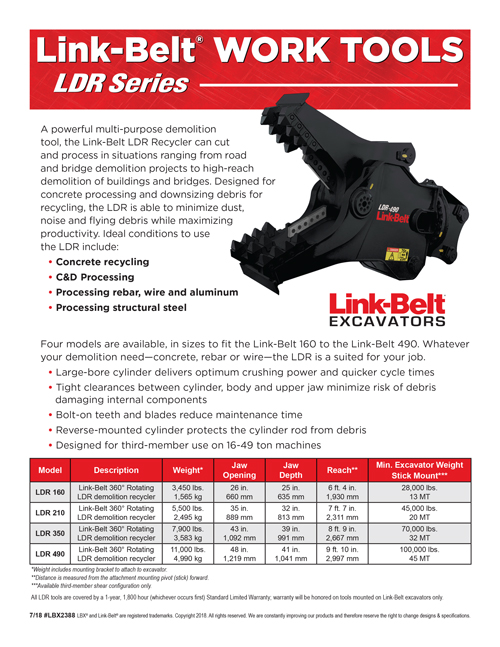

Link-Belt LDR Flyer


The Link-Belt LDR Recycler is powerful multi-purpose demolition tool that can cut and process in situations ranging from road and bridge demolition projects to high-reach demolition of buildings and bridges. Designed for concrete processing and downsizing debris for recycling, the LDR is able to minimize dust, noise and flying debris while maximizing productivity. Four models are available, in sizes to fit the Link-Belt 160 to the Link-Belt 490.

Ideal conditions to use the LDR include concrete recycling; C&D processing; processing structural steel, and processing rebar, wire and aluminum.

Standard features of the LDR include:

  • Large-bore cylinder delivers optimum crushing power and quicker cycle times
  • Tight clearances between cylinder, body and upper jaw minimize risk of debris damaging internal components
  • Bolt-on teeth and blades reduce maintenance time
  • Reverse-mounted cylinder protects the cylinder rod from debris
  • Designed for third-member use on 16-49 ton machines
Model Description Weight* Jaw Opening Jaw Depth Reach** Min Excavator Weight
(Stick Mount)***
LDR 160 Link-Belt 360̊ Rotating LDR demolition recycler 3,450 lbs
(1,565 kg)
26 in
(660 mm)
25 in
(635 mm)
6 ft 4 in
(1,930 mm)
28,000 lbs
(13 MT)
LDR 210 Link-Belt 360̊ Rotating LDR demolition recycler 5,500 lbs
(2,495 kg)
35 in
(889 mm)
32 in
(813 mm)
7 ft 7 in
(2,311 mm)
45,000 lbs
(20 MT)
LDR 350 Link-Belt 360̊ Rotating LDR demolition recycler 7,900 lbs
(3,583 kg)
43 in
(1,092 mm)
39 in
(991 mm)
8 ft 9 in
(2,667 mm)
70,000 lbs
(32 MT)
LDR 490 Link-Belt 360̊ Rotating LDR demolition recycler 11,000 lbs
(4,990 kg)
48 in
(1,219 mm)
41 in
(1,041 mm)
9 ft 10 in
(2,997 mm)
100,000 lbs
(45 MT)

View Full Specs in Brochure

*Weight includes mounting bracket to attach to excavator.
**Distance is measured from the attachment mounting pivot (stick) forward.
***Available third-member shear configuration only.

All LDR tools are covered by a 1-year, 1,800-hour (whichever occurs first) Standard Limited Warranty; warranty will be honored on tools mounted on Link-Belt excavators only.
