Spin-Ace® Series Excavators

LBX Company's Spin-Ace® excavators feature a minimum swing radius so you can get in and out of the tightest job sites. These excavators are ideal for urban construction sites, traffic-restricted road maintenance or other jobs with limited maneuvering space.

Built with simplicity in mind, these excavators are no-nonsense workhorses powered by dependable Isuzu engines.

Spin-Ace® cabs feature wide, low-noise interior space, excellent all-around visibility and comfortable operator's seats.

Additional features like the Nephron oil filtration system and the One-Touch Decelerator make these machines conservative with fuel while extending their operating life.

Model # Operating Weight Net hp @ rpm Tail Swing
75 X3 Spin Ace 17,400 lbs. 54 hp @ 2,000 rpm 4' 9"
75 Spin Ace Mono Boom (Tier 4a) 17,461 lbs. 54 hp @ 2,000 rpm 4' 1"

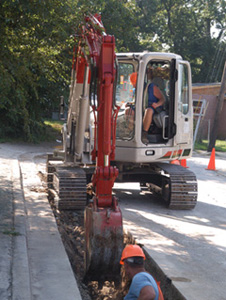

80 X3 Spin Ace 18,900 lbs 54 hp @ 2,000 rpm 5' 6"
80 Spin Ace Swing Boom (Tier 4a) 18,585 lbs 54 hp @ 2,000 rpm 5' 5"
135 Spin Ace (Tier 3) 29,762 lbs. 95 hp @ 2,000 rpm 4' 10"
145 X3 Spin Ace (Tier 4a) 33,069 lbs. 100 hp @ 2,000 rpm 5' 1"
225 Spin Ace (Tier 3) 53,352 lbs. 153 hp @ 1,800 rpm 5' 8"
235 X3 Spin Ace (Tier 4a) 56,879 lbs. 160 hp @ 1,800 rpm 5' 10"
