EQUIPMENT

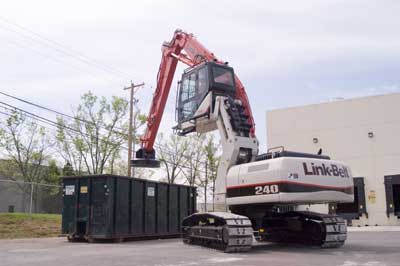

240 X2 Material Handler
Weight 65,900 - 67,682 lbs.
Swing Torque 51,482 lbf-ft.
Arm Lengths



  Droop nose 19´ 0˝
  Linkage-style 16´ 5˝
Maximum Depth

12´ 9˝

Maximum Reach 41´ 11˝
Maximum Swing Speed 10.7 rpm
Travel Speed 2.2 - 3.4 mph
Gradeability 70%
Engine/Type Isuzu AH-4HK1X Tier 3 turbocharged diesel
Net hp @ rpm 177 hp @ 2,000 rpm


Click here to download full specifications as an Acrobat Reader/PDF
