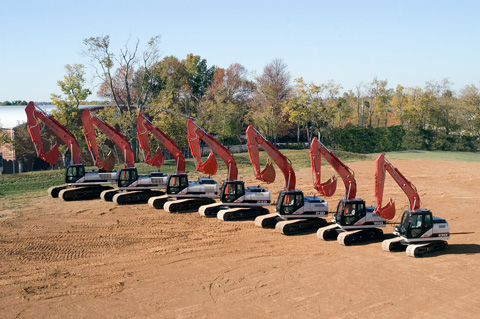

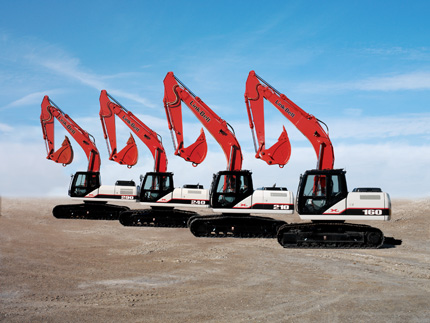

Link-Belt X2 series

The results of head-to-head competitive testing are staggering. You save money in fuel costs and load more trucks using a Link-Belt excavator.

Want more information?

Check the links below.

Fuel Savings Calculator Request our White Papers

The Link-Belt X2 series of excavators are proof that LBX is always innovating to provide the best choice for contractors in the industry. ExtremeTechnology has resulted in significant improvements in the areas of power, profitability, efficiency, productivity, durability, serviceability and comfort.

Real power is achieved in the X2 series due to perfect synergy between engine power and hydraulic power. This power is complemented by the increased profitablity of clean-burning and fuel efficient Isuzu engines. The X2 series is designed for maximum efficiency through improvements in the engine and hydraulic system. And the productivity of the X2 series is remarkable, with two-speed boom lifting and arm open/close functions that work in cooperation with hydraulic system regeneration to provide exceptional speeds in digging, lifting and swing applications. Additionally, every major component of the X2 provides maximum strength, support and durability. And with a 5,000-hour hydraulic oil change interval and a 2,000-hour filter replacement interval, the owning and operating costs of the X2 are likely the lowest in the industry. Finally, the X2 Series cab has industry-leading spaciousness, expansive legroom, quietness and amenities.

The X2’s are truly “What’s Next” in the future of excavators.

Model # Operating Weight Net hp @ rpm Bucket Capacity
130 X2 28,440 lbs. 95 hp @ 2,000 rpm 0.42 - 0.98 yd³
160 X2 37,700 lbs. 120 hp @ 2,200 0.50 - 1.14 yd³
210 X2 47,400 lbs. 157 hp @ 1,800 rpm 0.61 - 1.75 yd³
210 X2 LF 50,710 lbs. 157 hp @ 1,800 rpm 0.50 - 0.95 yd³
240 X2 54,895 lbs. 177 hp @ 2,000 rpm 0.76 - 2.43 yd³
240 X2 LF 61,750 lbs. 177 hp @ 2,000 rpm 0.50 - 0.86 yd³
290 X2 65,700 lbs. 207 hp @ 1,800 rpm 0.69 - 2.43 yd³
290 X2 LF 65,700 lbs. 207 hp @ 1,800 rpm 0.69 - 2.43 yd³
350 X2 79,146 lbs. 271 hp @ 2,000 rpm 1.08 - 2.93 yd³
460 X2 105,600 lbs. 362 hp @ 1,950 rpm 1.58 - 4.05 yd³
700 X2 153,442 lbs. 463 hp @ 1,800 1.78 - 4.89 yd³
800 X2 180,780 lbs. 495 hp @ 1,800 rpm 2.47 - 5.42 yd³
